Air-to-water heat pumps (Monoblock) R290 DC Inverter

suitable for cold climate

High-temperature heat pump R290 Niko Therm

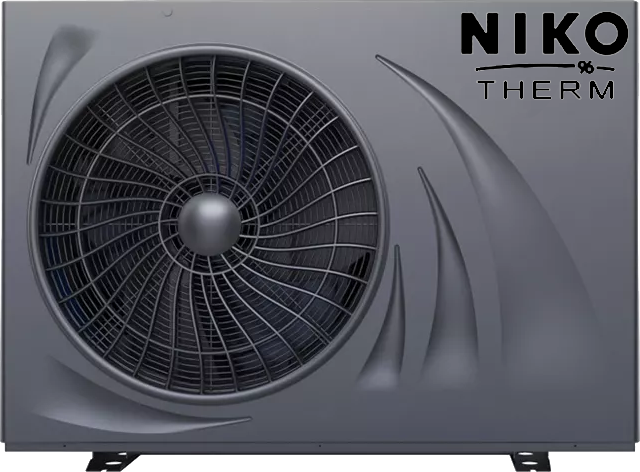

Cgk020v4p b edited new 4

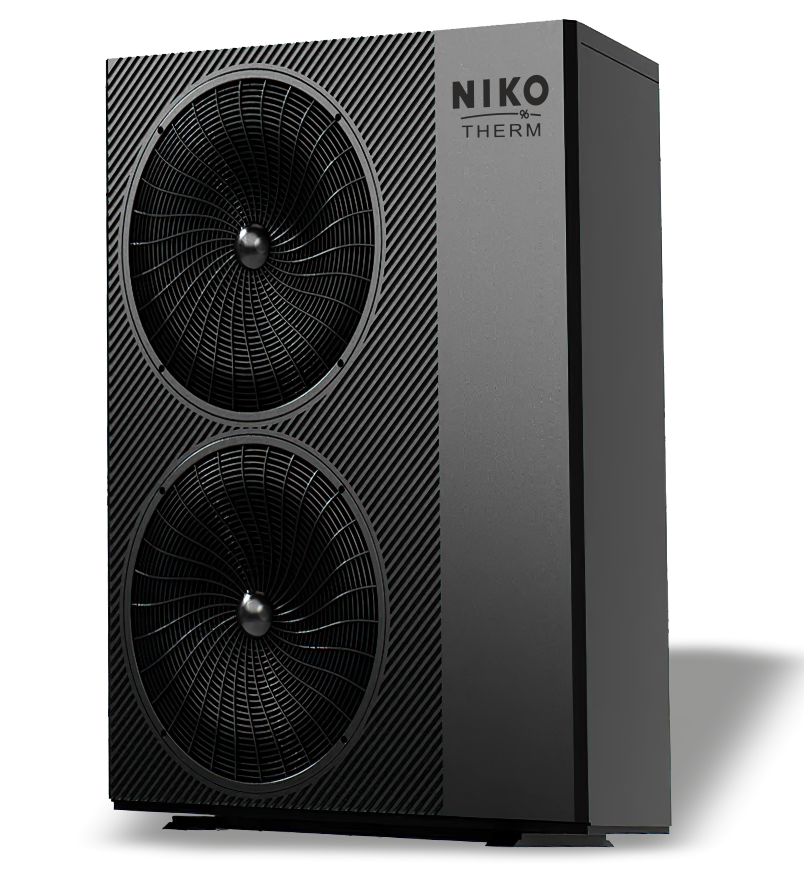

Korica1

High-temperature heat pump R290 Niko Therm

Power supply: 220-240V/380-420VV
  • Temperature range: -25℃ to 45℃
  • Heating water temperature: Heating: 30℃～75℃; Cooling: 32℃～12℃)
  • Control: wired controller
  • Operating modes: DHW/Heating/Cooling/DHW+Heating/DHW+Cooling
Technical Specifications
Make an Inquiry
Category Tag

Features

icon-display
5 inch color touch screen

The 5-inch color touchscreen allows you to control the temperature and set the system's operating mode with ease. With a modern and clean interface, the screen easily checks for error codes, ensuring you can change or program the room temperature at any time.

icon-r290-qa16vitk688s8ddwyr8rvqukwqwv0hpwn0yfgg2cha
Refrigerant 290

The refrigerant R290 is more environmentally friendly than other traditional refrigerants. Its ability to provide the heat pump with more efficient recharge and recycling capabilities than other refrigerants means that the unit can operate at much higher efficiency.

icon-software-update
Remote software upgrade with one click

If a software update is required, the system will notify you so that you can update the controller software with one click at any time and from anywhere, provided that you are connected to the Internet. The update only takes a few minutes, depending on the speed of your Internet connection.

icon-defrosting
Intelligent defrosting

NIKO Therm has its own intelligent PID type defrost control mode. When defrost conditions are met, the defrost mode will automatically turn on to prevent the module from being confused during defrosting and consuming energy, which will improve the reliability and economy of the unit.

Key components

R290 key components en

Technical characteristics

Model CGK020V4P-B CGK030V4P-B CGK040V4P-B CGK050V4P-B CGK-030V4P-B CGK-040V4P-B CGK-050V4P-B
Electrical power supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1 220-240/50/1 380-420/50/3 380-420/50/3 380-420/50/3
Maximum heating power (A7℃/W35℃) kW 6.5 9.1 12 15.2 9.1 12 15.2
COP (A7℃/W35℃) W/W 4.4 4.2 3.9 3.9 4.2 3.9 3.9
Heating power Min./Max.(A7℃/W35℃) kW 2.20 / 6.50 3.15 / 9.10 4.35 / 12.00 5.60 / 15.20 3.15 / 9.10 4.35 / 12.00 5.60 / 15.20
Consumption in Heating mode Min./Max.(A7℃/W35℃) W 441 / 1477 626 / 2167 885 / 3073 1125 / 3900 626 / 2167 885 / 3073 1125 / 3900
COP Min./Max.(A7℃/W35℃) W/W 4.4 / 4.99 4.2 / 5.03 3.90 / 4.92 3.90 / 4.98 4.2 / 5.03 3.90 / 4.92 3.90 / 4.98
Maximum heating power (A7℃/W45℃) kW 6.30 8.60 11.2 14.5 8.60 11.2 14.5
COP (A7℃/W45℃) W/W 3.60 3.52 3.28 3.23 3.52 3.28 3.23
Heating power Min./Max.(A7℃/W45℃) kW 2.01 / 6.30 2.90 / 8.60 4.00 / 11.20 5.40 / 14.50 2.90 / 8.60 4.00 / 11.20 5.40 / 14.50
Consumption in Heating mode Min./Max.(A7℃/W45℃) W 522 / 1750 757 / 2443 1071 / 3415 1427 / 4489 757 / 2443 1071 / 3415 1427 / 4489
COP Min./Max.(A7℃/W45℃) W/W 3.60 / 3.85 3.52 / 3.83 3.28 / 3.74 3.23 / 3.78 3.52 / 3.83 3.28 / 3.74 3.23 / 3.78
Maximum Cooling Capacity (A35℃/W18℃) kW 5.70 7.04 10.0 13.6 7.04 10.0 13.6
EER (A35℃/W18℃) W/W 3.48 3.43 3.40 3.28 3.43 3.40 3.28
Cooling capacity Min./Max.(A35℃/W18℃) kW 1.82 / 5.70 2.64 / 7.04 3.81 / 10.00 5.20 / 13.60 2.64 / 7.04 3.81 / 10.00 5.20 / 13.60
Consumption in Cooling mode Min./Max.(A35℃/W18℃) W 463 / 1638 677 / 2052 1003 / 2941 1402 / 4146 677 / 2052 1003 / 2941 1402 / 4146
EER Min./Max.(A35℃/W18℃) W/W 3.48 / 3.93 3.43 / 3.90 3.40 / 3.80 3.28 / 3.71 3.43 / 3.90 3.40 / 3.80 3.28 / 3.71
Maximum Cooling Capacity(A35℃/W7℃) kW 4.45 5.63 7.2 10.2 5.63 7.2 10.2
EER(A35℃/W7℃) W/W 2.87 2.66 2.62 2.60 2.66 2.62 2.60
Cooling capacity Min./Max.(A35℃/W7℃) kW 1.53 / 4.45 2.10 / 5.63 3.58 / 7.20 4.52 / 10.20 2.10 / 5.63 3.58 / 7.20 4.52 / 10.20
Consumption in cooling mode Min./Max.(A35℃/W7℃) W 443 / 1551 612 / 2117 1213 / 2748 1520 / 3923 612 / 2117 1213 / 2748 1520 / 3923
EER Min./Max.(A35℃/W7℃) W/W 2.87 / 3.45 2.66 / 3.43 2.62 / 2.95 2.60 / 2.97 2.66 / 3.43 2.62 / 2.95 2.60 / 2.97
Maximum electrical power kW 3.00 4.00 5.00 6.30 4.00 5.00 6.30
Maximum current A 14.35 19.14 23.92 30.14 8.44 10.55 13.29
Cross-section of power wires mm² 4.0 4.0 6.0 6.0 2.5 2.5 4.0
Fuse A 20A 25A 32A 40A 13A 16A 20A
Compressor Brand HIGHLY HIGHLY HIGHLY HIGHLY HIGHLY HIGHLY HIGHLY
Refrigerant / Quantity Kg R290/0.50 R290/0.75 R290/0.90 R290/1.20 R290/0.75 R290/0.90 R290/1.20
Fan Type / DC DC DC DC DC DC DC
Number / 1 1 1 2 1 1 2
Debit m3/h 2500 3000 3500 5000 3000 3500 5000
Speed RPM 900 900 900 900 900 900 900
Power W 116 116 116 116*2 116 116 116*2
Water heat exchanger Type / Plate-shaped Plate-shaped Plate-shaped Plate-shaped Plate-shaped Plate-shaped Plate-shaped
Pressure drop kPa 18 20 23 25 20 23 25
Pipe connections Inch G1" G1" G1" G1" G1" G1" G1"
Pump model / APM25-9- APM25-9- APM25-9- APF25-12-130E APM25-9- APM25-9- APF25-12-130E
Maximum pressure m 9 9 9 12 9 9 12
Debit Min./Rated./Max. L/S 0.19 0.31 0.52 0.27 0.43 0.72 0.36 0.57 0.96 0.45 0.73 1.21 0.27 0.43 0.72 0.36 0.57 0.96 0.45 0.73 1.21
Noise (Sound Pressure) dB(A) 40 42 44 46 42 44 46
Sound Power dB(A) 54 55 58 59 55 58 59
Moisture protection / IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Dimensions (L×W×H) mm 1053*475*755 1110*475*810 1110*475*960 1110*475*1355 1110*475*810 1110*475*960 1110*475*1355
Carton size (L×D×H) mm 1115*505*910 1165*505*960 1165*505*1100 1165*505*1520 1165*505*960 1165*505*1100 1165*505*1520
Wooden crate size (L×D×H) mm 1150*530*920 1200*530*970 1200*530*1120 1200*530*1510 1220*530*970 1200*530*1120 1200*530*1510
Net weight kg 90 106 120 151 106 120 151
Weight with carton kg 102 119 133 166 119 133 166
Weight with wooden crate kg 122 142 156 188 142 156 188
Loading capacity (20/40HQ) number 44 / 96 44 / 92 44 / 92 22 / 48 44 / 92 44 / 92 22 / 48
Pdesignh （35/55℃） kW 5.061/4.588 6.751/6.559 9.052/8.609 12.582/11.476 6.751/6.559 8.625/8.066 12.582/11.476
SCOP（35/55℃） kWh/kW 4.84/3.58 4.76/3.58 4.74/3.69 4.73/3.62 4.76/3.58 4.62/3.56 4.73/3.62
SCOPon （35/55℃） kWh/kW 4.87/3.61 4.78/3.59 4.76/3.68 4.75/3.63 4.78/3.59 4.64/3.58 4.75/3.63
QH（35/55℃） kWh/ye 10467/9479 13935/13560 17787/17787 25995/23709 13935/13560 17820/16665 25995/23709
QHE（35/55℃） kWh/ye 2162/2644 2927/3789 3947/4838 5493/6547 2927/3789 3855/4675 5493/6547
Ƞs,h（35/55℃） -- 190.6%/140.4% 187.4%/140.2% 186.5%/144.1% 186.3%/141.9% 187.4%/140.2% 181.9%/139.6% 186.3%/141.9%
Energy class: (According to (EU)No 811/2013 Table 2) -- A+++ A+++ A+++ A+++ A+++ A+++ A+++
Energy class: (According to (EU)No 811/2013 Table 1) -- A++ A++ A++ A++ A++ A++ A++
External operating temperature.(℃) -25℃~45℃
DHW operating temperature.(℃) 10℃~70℃(DHW)
Operating temperature Heating.(℃) 10℃~70℃(Heating)
Cooling operating temperature.(℃) 12℃~30℃(Cooling)
Note: (1) Heating conditions: water inlet/outlet temperature: 30℃/35℃, Outdoor temperature: DB 7℃/WB 6℃;
(2) Heating conditions: water inlet/outlet temperature: 40℃/45℃, Outdoor temperature: DB 7℃/WB 6℃;
(3) Cooling conditions: water inlet/outlet temperature: 23℃/18℃, Outdoor temperature: DB35℃/WB24℃;
(4) Cooling conditions: water inlet/outlet temperature: 12℃/7℃, Outdoor temperature: DB35℃/WB24℃;

Additional information

  1. Additional electric heater. Activation of the additional electric heater function in the settings menu. In heating mode, the additional heater is switched on when all of the following conditions are met:
    • Activated function in the menu;
    • The outdoor temperature ≤ the set outdoor temperature for the function (Default setting 0℃);
    • Water temperature ≤ Set temperature – Deviation for electric heater (Setting 5℃);
    • More than 50 minutes have passed since the compressor started (Adjustable);
  2. The heater is switched off when at least one of the following conditions is met:
    • The outdoor temperature ≥ The set outdoor temperature for the function + 3℃;
    • Water temperature ≥ Set water temperature;
    • External temperature sensor damaged; (4) Machine shutdown.
  3. Defrost function. In heating mode, the outdoor heat exchanger works as an evaporator. If the outdoor temperature is too low, frost may form on the heat exchanger, which reduces the efficiency of the unit. In such a case, the operation mode must be temporarily changed to Cooling to melt the frost and restore the high efficiency of the unit. Defrost conditions: Defrosting will start if the following conditions occur simultaneously:
    • Time between two defrost cycles ≥ set time: 45min;
    • The outdoor temperature ≤ the defrost outdoor temperature set point, for a time of at least 2 seconds, the default value is 15℃ (This condition is ignored when the temperature sensor is faulty);
    • Outdoor temperature – evaporation temperature ≥ Set temperature difference, for a period of at least 2 minutes, Factory setting 5℃; (This condition is ignored if the sensor is damaged)
    • Evaporation temperature ≤ Defrost setpoint temperature, for a period of 2 seconds, Factory setting -1℃;
  4. Manual defrosting is also activated without the above conditions being met. Defrosting ends if one of the following conditions is met:
    • Defrost time ≥ maximum defrost time (Default setting 8min).
    • Heat exchanger temperature ≥ set temperature to exit defrost mode (default setting 15℃)
    • Turning off the machine

Heating capacity at different outdoor temperatures

Model CGK020V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 2.44 2.40 2.35 2.30 2.27



-20 2.90 2.88 2.86 2.75 2.69



-15 3.44 3.38 3.32 3.26 3.19 3.10 2.95 2.78
-7 4.43 4.37 4.30 4.19 4.09 3.93 3.81 3.67 3.48
-2 5.32 5.29 5.17 5.09 5.00 4.46 4.23 3.99 3.76
2 5.78 5.70 5.62 5.53 5.44 4.85 4.60 4.34 4.09
7 6.67 6.53 6.42 6.28 6.10 5.75 5.48 5.19 4.80
12 6.63 6.49 6.38 6.18 6.00 5.78 5.49 5.25 5.09
20 6.30 6.17 6.00 5.78 5.57 5.25 5.02 4.75 4.55
Cgk 020v4p b en ver
Model CGK030V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 3.42 3.35 3.29 3.12 2.97



-20 4.24 4.15 4.07 3.83 3.65 3.43


-15 4.97 4.86 4.75 4.53 4.42 4.24 4.03 3.78
-7 6.37 6.18 6.01 5.85 5.64 5.35 4.97 3.88 3.64
-2 7.24 7.13 7.04 6.82 6.61 6.38 6.02 5.18 3.81
2 8.04 7.92 7.82 7.56 7.34 7.05 6.73 6.02 4.23
7 9.10 8.93 8.82 8.54 8.28 8.03 7.85 7.13 5.20
12 9.20 9.01 8.76 8.43 8.18 7.96 7.73 6.85 5.08
20 8.83 8.61 8.40 7.95 7.49 7.21 7.02 6.32 5.43
Cgk030v4p b en ver
Model CGK040V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 5.03 4.91 4.83 4.74 4.64



-20 5.94 5.88 5.81 5.65 5.51 4.43


-15 6.84 6.78 6.71 5.57 6.41 5.38 5.03 4.75
-7 8.61 8.50 8.40 8.25 8.06 7.03 6.20 5.56 4.81
-2 9.87 9.75 9.65 9.44 9.23 8.75 8.20 7.23 5.04
2 10.97 10.85 10.73 10.49 10.26 9.91 9.62 8.02 5.60
7 12.41 12.26 12.11 11.90 11.71 11.40 11.08 10.63 9.56
12 12.30 12.14 11.99 11.74 11.52 11.18 10.73 10.32 9.82
20 11.83 11.60 11.45 11.20 10.92 10.70 10.30 9.86 9.61
Cgk040v4p b en ver
Model CGK050V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 6.67 6.52 6.41 6.23 5.98



-20 7.89 7.73 7.64 7.45 7.30



-15 9.37 9.13 8.98 8.63 8.48 8.37 8.01 7.86
-7 11.69 11.17 10.68 10.45 10.21 10.12 10.05 9.29 8.39
-2 12.92 12.56 12.21 11.93 11.69 11.45 10.98 10.15 9.03
2 14.04 13.65 13.27 12.97 12.71 12.45 11.93 11.03 9.82
7 15.29 14.82 14.51 14.18 13.87 13.51 12.98 12.25 11.34
12 16.55 15.98 15.21 14.86 14.41 14.05 13.55 12.83 11.94
20 15.23 14.61 14.05 13.80 13.56 13.33 12.96 12.42 11.67
Cgk050v4p b en ver
Model CGK-030V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 3.42 3.35 3.29 3.12 2.97



-20 4.24 4.15 4.07 3.83 3.65 3.43


-15 4.97 4.86 4.75 4.53 4.42 4.24 4.03 3.78
-7 6.37 6.18 6.01 5.85 5.64 5.35 4.97 3.88 3.64
-2 7.24 7.13 7.04 6.82 6.61 6.38 6.02 5.18 3.81
2 8.04 7.92 7.82 7.56 7.34 7.05 6.73 6.02 4.23
7 9.10 8.93 8.82 8.54 8.28 8.03 7.85 7.13 5.20
12 9.20 9.01 8.76 8.43 8.18 7.96 7.73 6.85 5.08
20 8.83 8.61 8.40 7.95 7.49 7.21 7.02 6.32 5.43
Cgk 030v4p b en ver
Model CGK-040V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 5.03 4.91 4.83 4.74 4.64



-20 5.94 5.88 5.81 5.65 5.51 4.43


-15 6.84 6.78 6.71 5.57 6.41 5.38 5.03 4.75
-7 8.61 8.50 8.40 8.25 8.06 7.03 6.20 5.56 4.81
-2 9.87 9.75 9.65 9.44 9.23 8.75 8.20 7.23 5.04
2 10.97 10.85 10.73 10.49 10.26 9.91 9.62 8.02 5.60
7 12.41 12.26 12.11 11.90 11.71 11.40 11.08 10.63 9.56
12 12.30 12.14 11.99 11.74 11.52 11.18 10.73 10.32 9.82
20 11.83 11.60 11.45 11.20 10.92 10.70 10.30 9.86 9.61
Cgk 040v4p b en ver
Model CGK-050V4P-B
Outdoor temperature ℃ Heating power (kW)
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 6.67 6.52 6.41 6.23 5.98



-20 7.89 7.73 7.64 7.45 7.30



-15 9.37 9.13 8.98 8.63 8.48 8.37 8.01 7.86
-7 11.69 11.17 10.68 10.45 10.21 10.12 10.05 9.29 8.39
-2 12.92 12.56 12.21 11.93 11.69 11.45 10.98 10.15 9.03
2 14.04 13.65 13.27 12.97 12.71 12.45 11.93 11.03 9.82
7 15.29 14.82 14.51 14.18 13.87 13.51 12.98 12.25 11.34
12 16.55 15.98 15.21 14.86 14.41 14.05 13.55 12.83 11.94
20 15.23 14.61 14.05 13.80 13.56 13.33 12.96 12.42 11.67
Cgk 050v4p b en ver

Conversion coefficient under different temperature conditions

Model CGK020V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 1.82 1.74 1.67 1.55 1.45



-20 2.18 2.12 1.96 1.81 1.64



-15 2.51 2.35 2.19 2.01 1.84 1.69 1.58 1.48
-7 3.09 2.84 2.66 2.41 2.20 2.02 1.84 1.64 1.45
-2 3.32 3.15 2.95 2.63 2.47 2.26 2.05 1.78 1.60
2 3.89 3.55 3.28 3.01 2.74 2.56 2.28 2.01 1.70
7 4.47 4.02 3.67 3.33 2.99 2.78 2.54 2.29 1.79
12 5.33 4.73 4.29 3.81 3.41 3.10 2.71 2.54 2.16
20 6.17 5.41 4.78 4.15 3.68 3.32 3.02 2.58 2.19
Cgk020v4p b cop 1 en ver
Model CGK030V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 1.80 1.70 1.59 1.48 1.31



-20 2.20 2.05 1.92 1.73 1.56 1.35


-15 2.49 2.30 2.15 1.96 1.79 1.62 1.45 1.19
-7 3.07 2.82 2.57 2.34 2.15 1.91 1.70 1.21 1.03
-2 3.30 3.05 2.81 2.56 2.32 2.13 1.98 1.50 1.08
2 3.73 3.48 3.17 2.85 2.62 2.35 2.13 1.82 1.16
7 4.20 3.91 3.57 3.21 2.93 2.62 2.30 1.99 1.39
12 5.18 4.61 4.18 3.74 3.33 2.92 2.50 2.25 1.53
20 5.93 5.20 4.69 4.02 3.52 3.08 2.72 2.52 1.85
Cgk030v4p b cop en ver
Model CGK040V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 2.07 1.93 1.81 1.68 1.55



-20 2.33 2.20 2.06 1.88 1.73 1.55


-15 2.57 2.43 2.26 2.12 1.91 1.70 1.50 1.24
-7 3.05 2.80 2.64 2.44 2.21 1.98 1.75 1.38 1.16
-2 3.26 3.01 2.88 2.61 2.40 2.16 1.96 1.56 1.24
2 3.68 3.42 3.14 2.83 2.60 2.33 2.18 1.78 1.48
7 4.04 3.78 3.43 3.12 2.85 2.58 2.32 2.04 1.73
12 4.81 4.46 4.01 3.61 3.28 2.85 2.58 2.30 2.04
20 5.56 5.13 4.49 3.95 3.60 3.16 2.84 2.63 2.26
Cgk040v4p b cop en ver
Model CGK050V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 2.05 1.92 1.81 1.67 1.52



-20 2.29 2.14 2.03 1.83 1.75



-15 2.62 2.40 2.26 2.05 1.92 1.79 1.61 1.50
-7 3.01 2.71 2.48 2.37 2.12 1.96 1.84 1.65 1.41
-2 3.32 2.94 2.59 2.35 2.18 2.06 1.95 1.74 1.56
2 3.43 3.10 2.88 2.61 2.42 2.29 2.08 1.93 1.64
7 3.86 3.53 3.23 2.90 2.69 2.48 2.22 2.05 1.83
12 4.43 4.02 3.68 3.38 2.93 2.64 2.41 2.26 1.98
20 5.13 4.62 4.01 3.75 3.34 2.96 2.68 2.42 2.12
Cgk050v4p b cop en ver
Model CGK-030V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 1.80 1.70 1.59 1.48 1.31



-20 2.20 2.05 1.92 1.73 1.56 1.35


-15 2.49 2.30 2.15 1.96 1.79 1.62 1.45 1.19
-7 3.07 2.82 2.57 2.34 2.15 1.91 1.70 1.21 1.03
-2 3.30 3.05 2.81 2.56 2.32 2.13 1.98 1.50 1.08
2 3.73 3.48 3.17 2.85 2.62 2.35 2.13 1.82 1.16
7 4.20 3.91 3.57 3.21 2.93 2.62 2.30 1.99 1.39
12 5.18 4.61 4.18 3.74 3.33 2.92 2.50 2.25 1.53
20 5.93 5.20 4.69 4.02 3.52 3.08 2.72 2.52 1.85
Cgk 030v4p b cop en ver
Model CGK-040V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 2.07 1.93 1.81 1.68 1.55



-20 2.33 2.20 2.06 1.88 1.73 1.55


-15 2.57 2.43 2.26 2.12 1.91 1.70 1.50 1.24
-7 3.05 2.80 2.64 2.44 2.21 1.98 1.75 1.38 1.16
-2 3.26 3.01 2.88 2.61 2.40 2.16 1.96 1.56 1.24
2 3.68 3.42 3.14 2.83 2.60 2.33 2.18 1.78 1.48
7 4.04 3.78 3.43 3.12 2.85 2.58 2.32 2.04 1.73
12 4.81 4.46 4.01 3.61 3.28 2.85 2.58 2.30 2.04
20 5.56 5.13 4.49 3.95 3.60 3.16 2.84 2.63 2.26
Cgk040v4p b cop 1 en ver
Model CGK-050V4P-B
Outdoor temperature ℃ COP （/kW ）
30/35 35/40 40/45 45/50 50/55 55/60 60/65 65/70 70/75
-25 2.05 1.92 1.81 1.67 1.52



-20 2.29 2.14 2.03 1.83 1.75



-15 2.62 2.40 2.26 2.05 1.92 1.79 1.61 1.50
-7 3.01 2.71 2.48 2.37 2.12 1.96 1.84 1.65 1.41
-2 3.32 2.94 2.59 2.35 2.18 2.06 1.95 1.74 1.56
2 3.43 3.10 2.88 2.61 2.42 2.29 2.08 1.93 1.64
7 3.86 3.53 3.23 2.90 2.69 2.48 2.22 2.05 1.83
12 4.43 4.02 3.68 3.38 2.93 2.64 2.41 2.26 1.98
20 5.13 4.62 4.01 3.75 3.34 2.96 2.68 2.42 2.12
Cgk050v4p b cop 1 en ver
Scroll to Top
